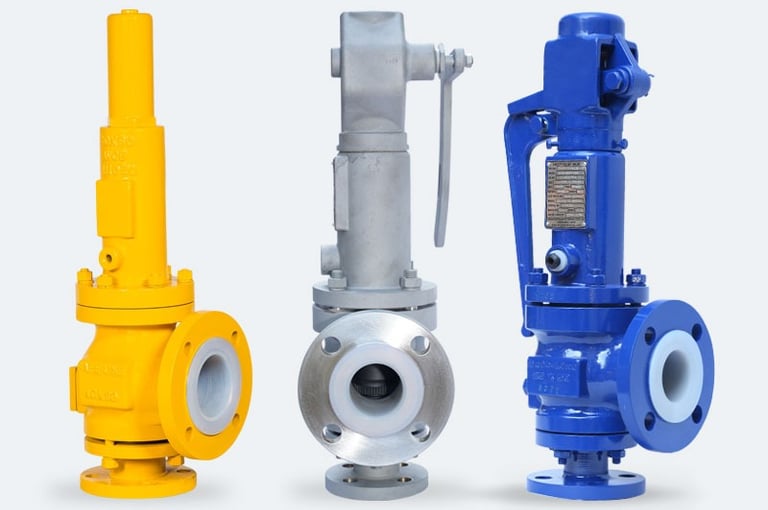

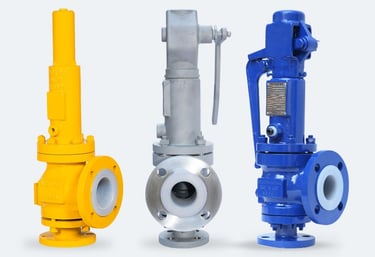

1. Types of Safety Relief Valves

a. Conventional Safety Relief Valves:

• Operation: Opens to relieve pressure when the set pressure is exceeded and closes when the pressure returns to a safe level.

• Applications: Used in various industries for gas and liquid service.

b. Balanced Bellows Safety Relief Valves:

• Design: Features a bellows assembly that balances the inlet pressure against the valve seat.

• Advantages: Reduces the effect of back pressure on the valve, ensuring accurate performance.

c. Pilot-Operated Safety Relief Valves:

• Operation: Uses a pilot valve to control the main valve, providing more precise pressure control.

• Applications: Ideal for high-pressure systems or where very low leak rates are required.

2. Material Specifications

Common Materials:

Body Materials:

• Carbon Steel: Cost-effective and suitable for many applications.

• Stainless Steel: Offers excellent corrosion resistance, suitable for aggressive environments.

• Alloy Steel: Used for high-temperature applications.

Seals and Gaskets:

• PTFE: For chemical resistance.

• Rubber: For general applications.

3. Size and Dimensions

Diameter:

Available Sizes: Typically ranges from 1/2 inch to 12 inches or larger, depending on the application.

Body Style:

Configurations: Available in threaded, flanged, or welded designs for easy integration into existing systems.

4. Pressure Ratings

• Typical Ratings: Manufactured to meet various pressure ratings, commonly including:

• ASME Section VIII: Suitable for most industrial applications.

• API Standards: For oil and gas industry applications.

• Set Pressure Range: Customizable to meet specific application needs, typically up to 3000 psi or more.

5. End Connections

Connection Types:

• Threaded Connections: Standard for smaller valves.

• Flanged Connections: Common for larger valves, ensuring secure attachment.

• Welded Connections: Used for permanent installations.

6. Operating Mechanism

Spring-Loaded Design:

Operation: Relies on a spring mechanism to hold the valve closed until the set pressure is reached.

Adjustable Spring Tension:

Customization: Allows for setting the desired opening pressure.

7. Special Features

Tamper-Proof Designs:

Security: Features that prevent unauthorized adjustments to the set pressure.

Test Ports:

Convenience: Allows for pressure testing without dismantling the valve.

Corrosion-Resistant Coatings:

Durability: Optional coatings to enhance performance in corrosive environments.

8. Testing and Certification

Testing Protocols:

• Hydrostatic Testing: Ensures the valve can withstand high pressure without leakage.

• Performance Testing: Verifies that the valve opens and closes at the specified set pressure.

Certification:

Compliance Standards: Adheres to ASME, API, and other relevant standards.

9. Documentation

Technical Data Sheets:

Specifications: Provide detailed information on materials, pressure ratings, and performance characteristics.

Material Certificates:

Compliance: Documentation certifying that materials meet specified standards.

Inspection Reports:

Quality Assurance: Detailed reports on testing results and certification.
